Mono Solar Panel Starter Kit
$299.99
Available: In stock
Features: - Includes 20A PWM Controller with LCD Screen - Portable and Easy Set-Up - Sleek Design for Aesthetic Quality - Grade A Mono Solar...
- Features: - Includes 20A PWM Controller with LCD Screen - Portable and Easy Set-Up - Sleek Design for Aesthetic Quality - Grade A Mono Solar Cells - Higher Module Conversion Efficiency - Produces 600-1200Wh a day - Generates 10.8 amp Power
- Charges 24 Volt Battery - Anodized Aluminum Frame and Tempered Glass - With folding Mounting Stand & Convenient for Installation - Easy to Set Up and Suites Variety Using Conditions - Foam Box for Safe Transport and Easy Storage
- Dust Tight and Waterproof with IP67 Rating - Set Up in Just 5 Minutes for Solar Starters - Used for Marine, Dry Camp, RVs, and Other Off-grid Applications What's in the Box: - 200W Solar Brief Case
- 3 ft. (1m) Cable with SAE to Anderson Connector - 3 ft. (1m) Cable with SAE to DC 8055 Male Connector - 10 ft. (3m) Cable with Bare Wire to Alligator Connector - 20A PWM Controller: 12V/24V - Carry bag Technical Specs:
- Power Supply: 200W - Short-Circuit Current (Isc):11.2A - Open-Circuit Voltage (Voc): 22.8V - Maximum Power Voltage (Vmp): 18.6V - Maximum Power Current (Imp): 10.8A - Maximum System Voltage: 1000VDC - Tolerance of PMax: ±3% - Series Fuse Rating: 15A
DETAILS
Features:

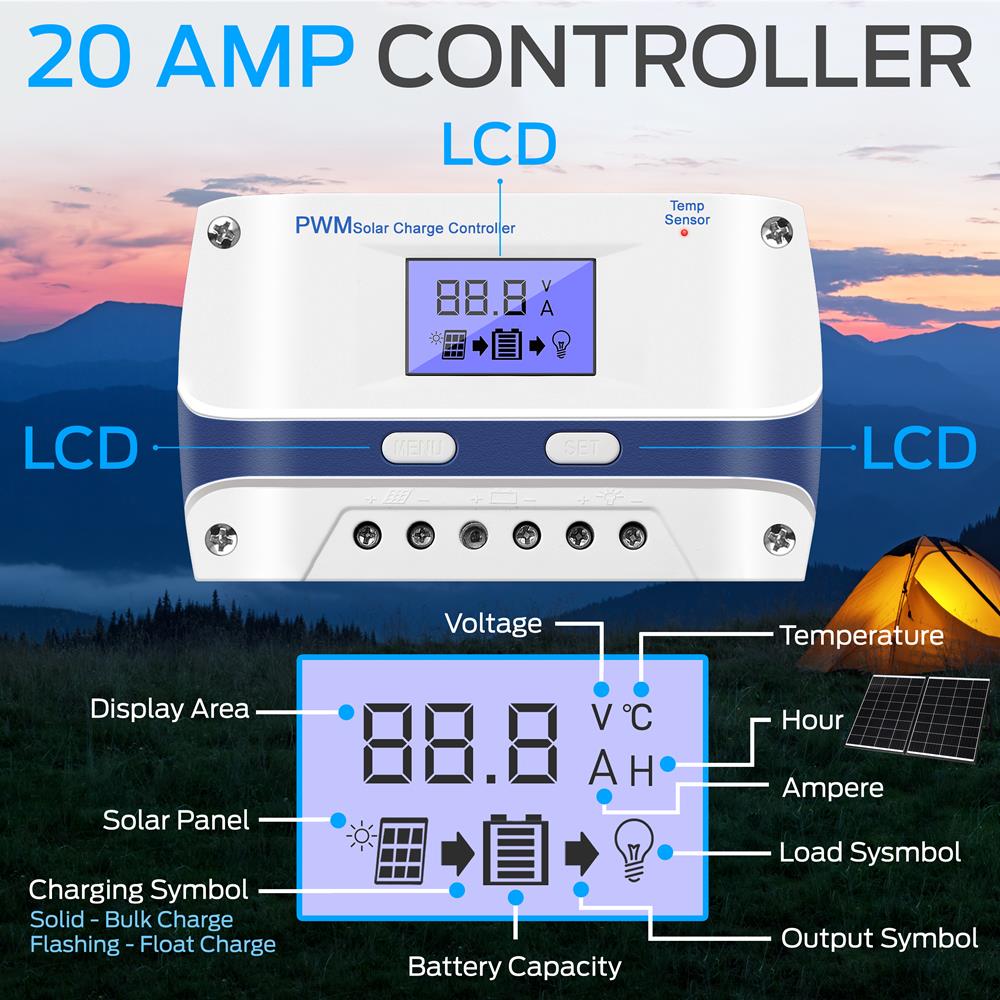

- Includes 20A PWM Controller with LCD Screen
- Portable and Easy Set-Up
- Sleek Design for Aesthetic Quality
- Grade A Mono Solar Cells
- Higher Module Conversion Efficiency
- Produces 600-1200Wh a day
- Generates 10.8 amp Power
- Charges 24 Volt Battery
- Anodized Aluminum Frame and Tempered Glass

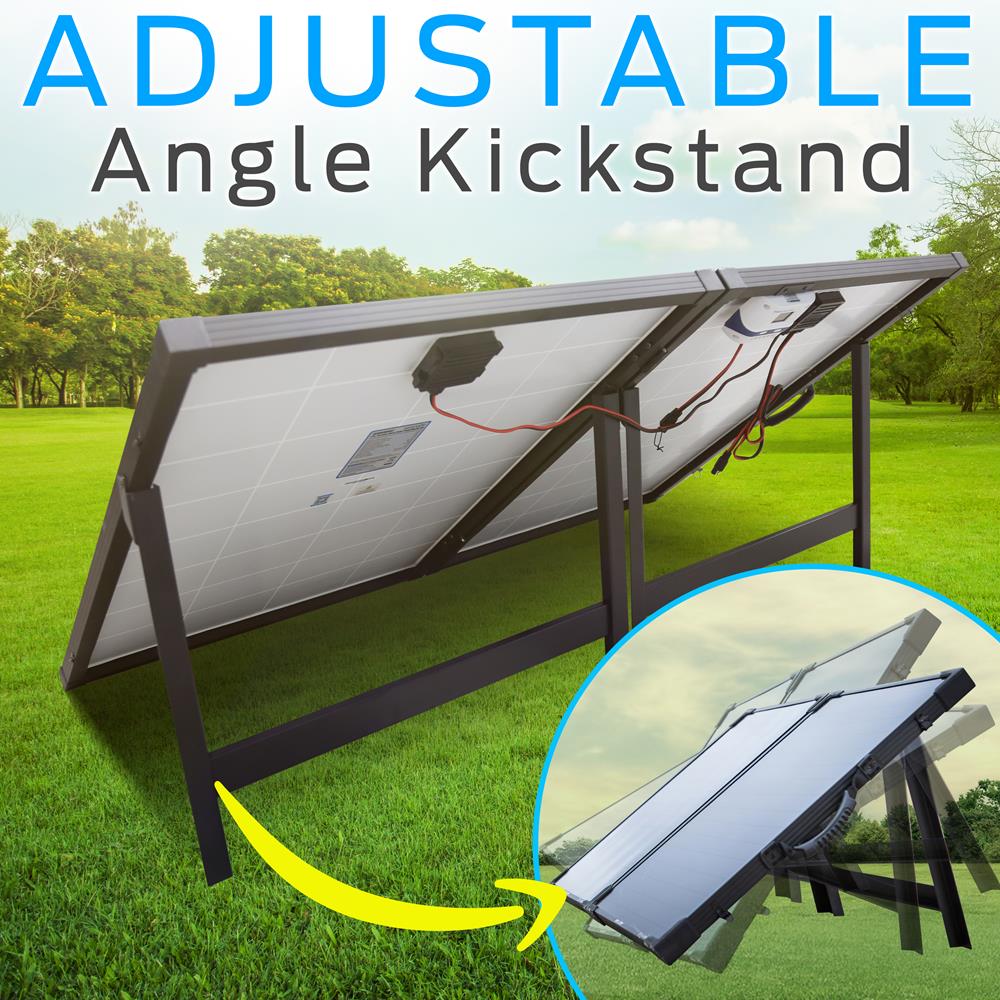

- With folding Mounting Stand & Convenient for Installation
- Easy to Set Up and Suites Variety Using Conditions
- Foam Box for Safe Transport and Easy Storage
- Dust Tight and Waterproof with IP67 Rating

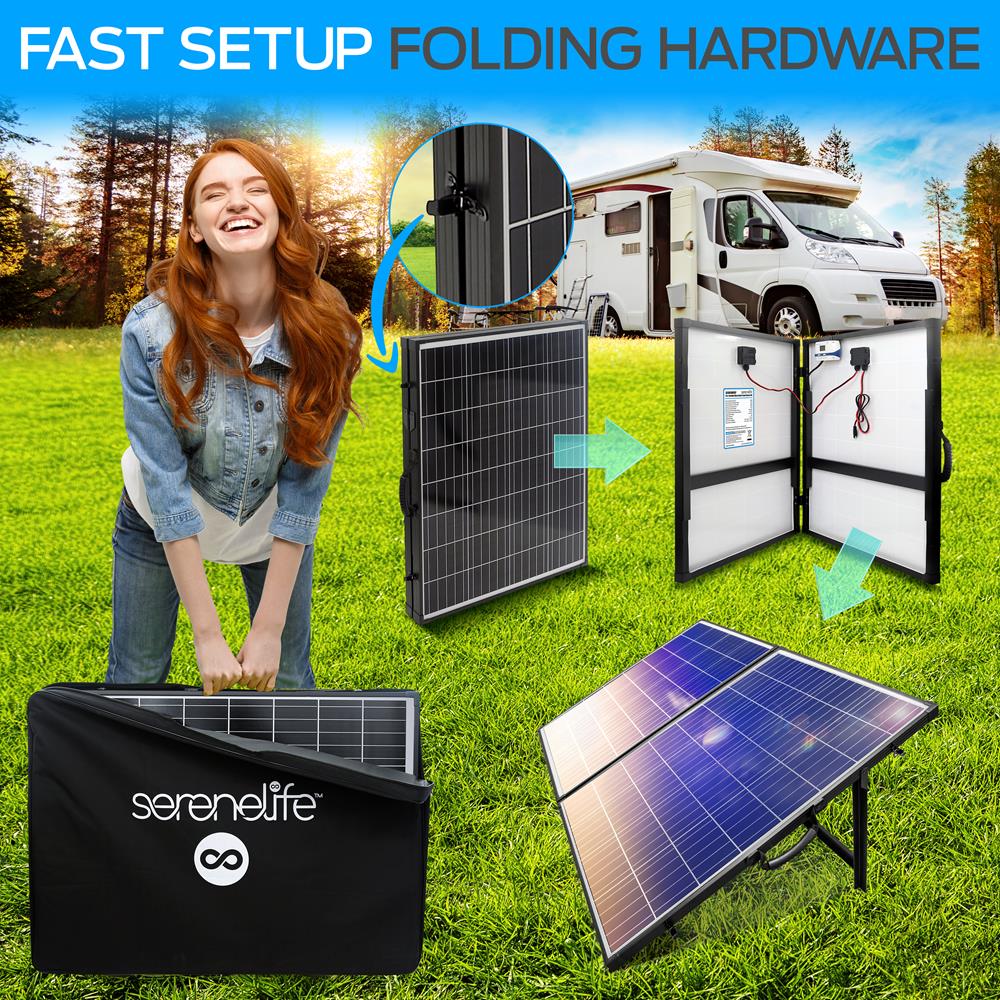

- Set Up in Just 5 Minutes for Solar Starters
- Used for Marine, Dry Camp, RVs, and Other Off-grid Applications

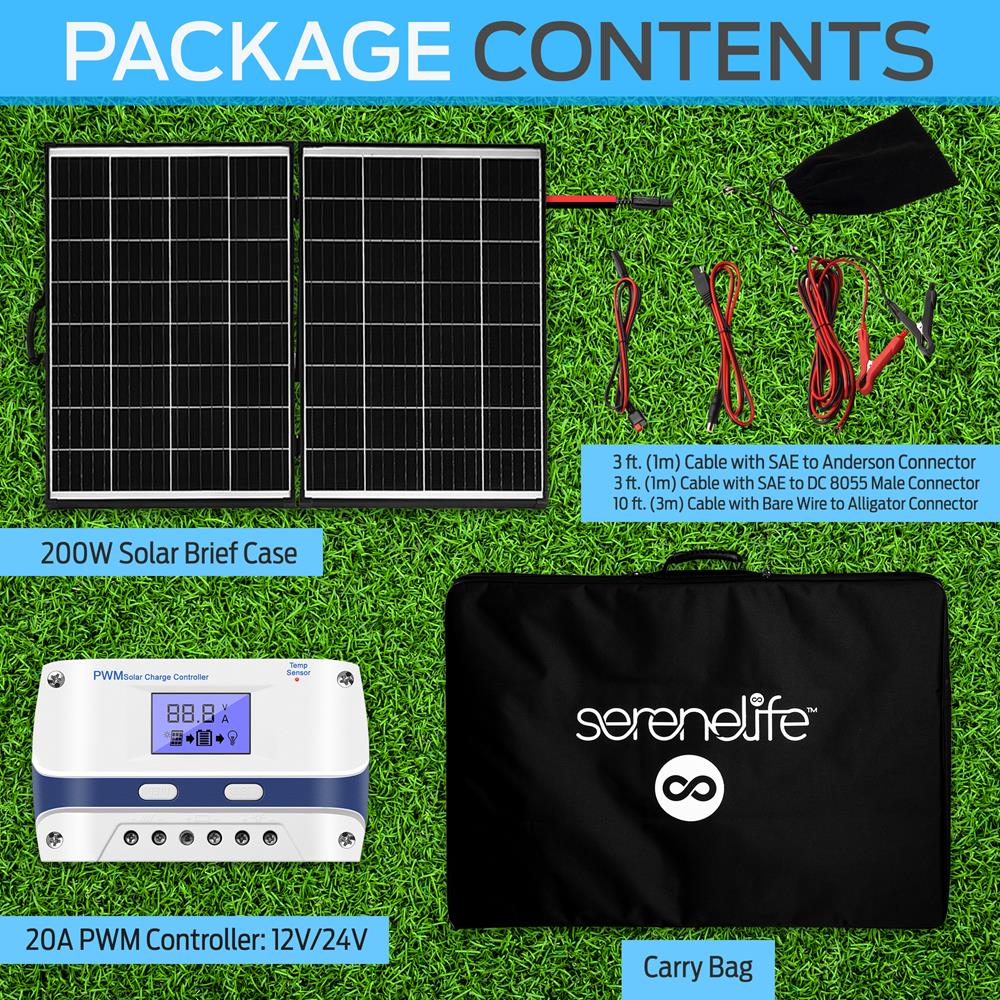

What's in the Box:
- 200W Solar Brief Case

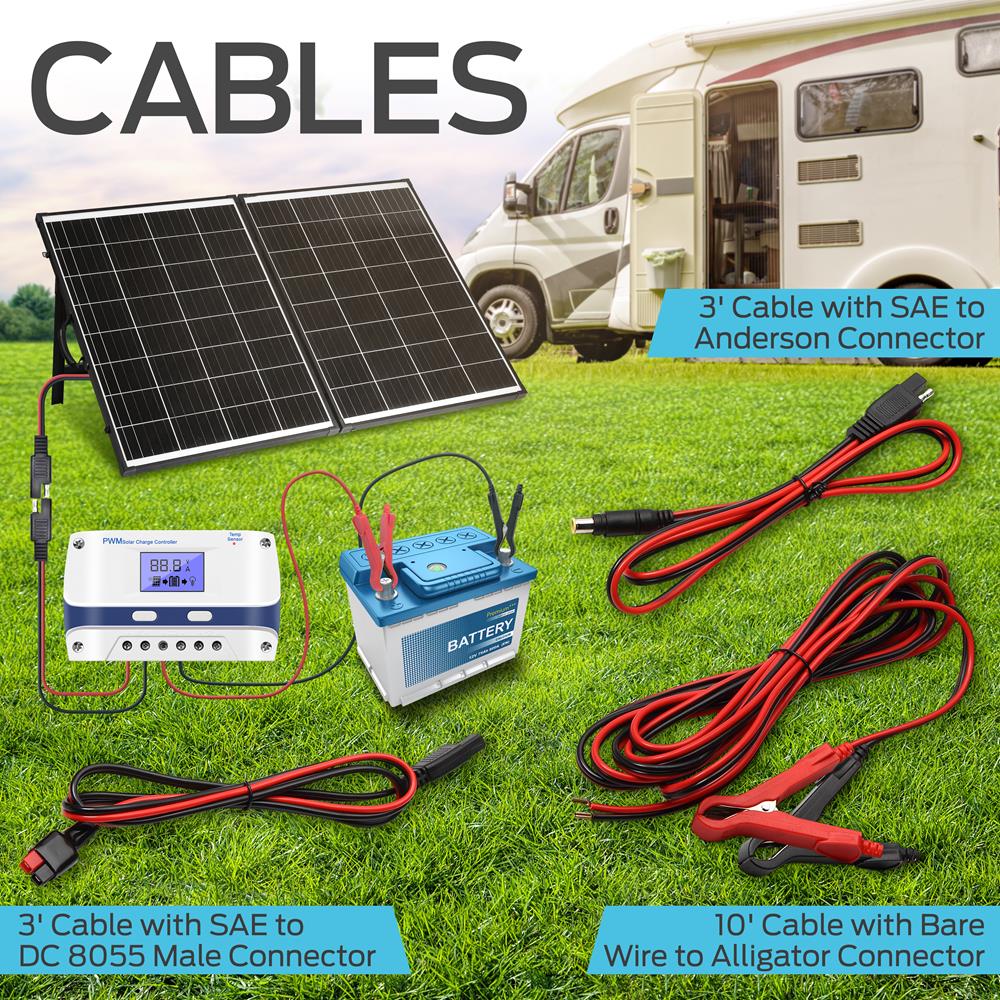

- 3 ft. (1m) Cable with SAE to Anderson Connector
- 3 ft. (1m) Cable with SAE to DC 8055 Male Connector
- 10 ft. (3m) Cable with Bare Wire to Alligator Connector
- 20A PWM Controller: 12V/24V
- Carry bag
Technical Specs:
- Power Supply: 200W
- Short-Circuit Current (Isc):11.2A
- Open-Circuit Voltage (Voc): 22.8V
- Maximum Power Voltage (Vmp): 18.6V
- Maximum Power Current (Imp): 10.8A
- Maximum System Voltage: 1000VDC
- Tolerance of PMax: ±3%
- Series Fuse Rating: 15A
- Operating Temperature: Controller and Inverter: -20℃-50℃
- Solar Panel: -40℃-85℃
- Controller Voltage: 12V/24V
- Max. Input: < 50V
- USB Output: 5V/2A
- Standby Current: < 12mA
- Type of Connector: SAE Connector
- Cell Type: High-Efficiency Monocrystalline
- Battery Type: 12V Lead-acid and Lithium-ion Batteries (Battery Not Included in the System)

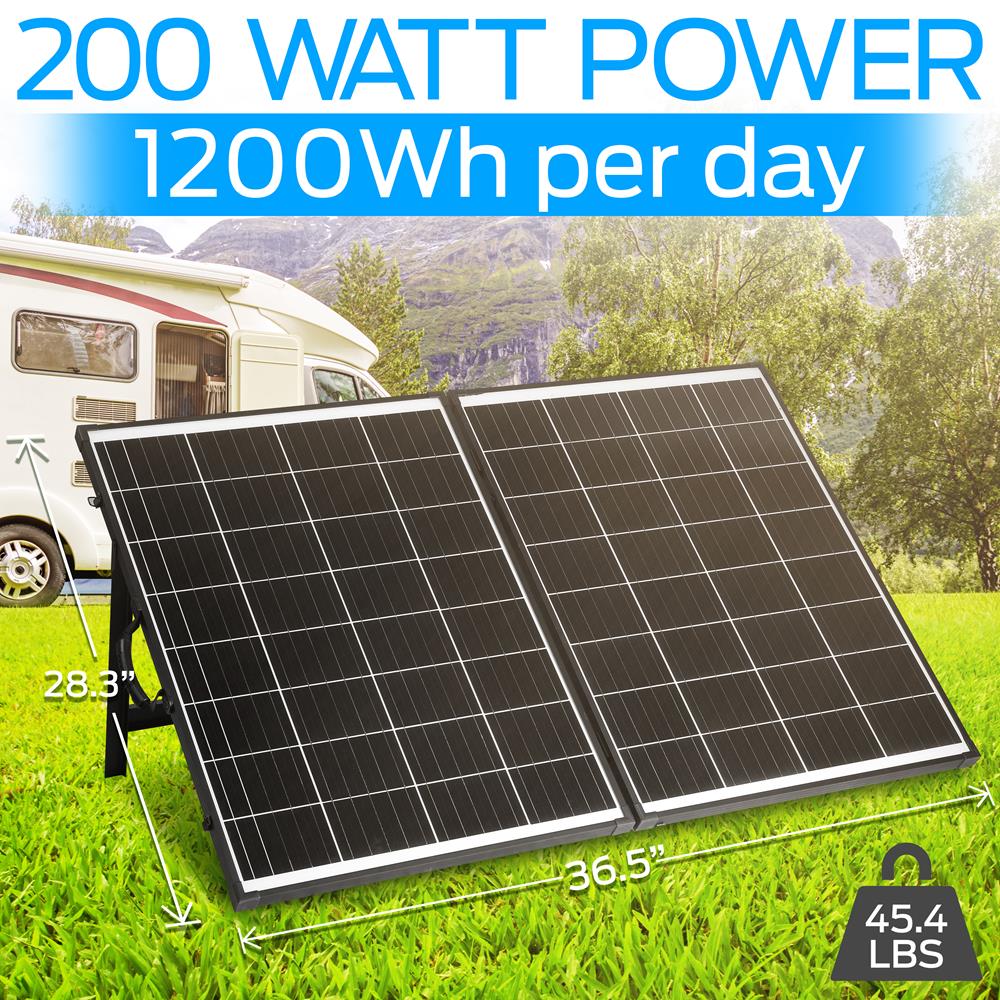

- Folded Dimension: 36.5'' x 28.3'' x 2.6'' -inches
- Unfolded Dimensions: 55.2'' x 36.5'' x 1.3'' –inches
